|Input voltage / frequency||AC100V-240V, 50/60Hz|
|Light source||Use 280W OSRAM or or yodn bulbs|
|Control channel||20/16 standard DMX channels|
|Operating mode||voice control, self-propelled, master-slave, DMX512|
|Color wheel||14 colors + white light, linear color conversion and rainbow effect|
|Gobo wheel||17 patterns + white color|
|Prism||two independent prism discs (standard 8 and 24 prisms), (8, 16, 24, 32, 48 prisms can be selected), prism and prism front and back free rotation, and prism positioning function, |
prism can be superimposed into a composite effect
|Focusing||DMX linear high-definition focusing, 2 meters to infinity sharpness adjustment, the far and near definition of the pattern can be adjusted freely|
|Atomization||Built-in atomizing mirror can generate soft wash effect adjustment,|
0%~100% linear atomization
|Strobe||Double-chip high-speed strobe, 1-15 times / sec|
|Dimming||0-100% mechanical linear dimming|
|Horizontal/Vertical||Horizontal scanning angle 540°, vertical scanning angle 270°, 8 or 16Bit precision fine adjustment, automatic return correction function;fast speed, smooth running |
without flick,low noise,accurate positioning
|Display interface||LCD liquid crystal display interface, can switch between Chinese and English display|
|Lamp housing||high temperature engineering plastics and alloy materials,streamlined design, beautiful appearance|
|Dimensions||L310 × W260 × H540mm|
|Weight||N.W: 15.6KGS, G.W: 17.6KGS|
|The console can be lit and the bulb can be switched on and off|
a) We have One year warranty for our products.
b) For damage on arrival, please claim to the shipping company firstly and get the claim number and inform us,also take the photos on the damage and send to us for verifying, we will help you to claim to the shipping company to get the compensation.
c) If there is the problem with the product, firstly you need send the pictures or the video to us, let us make surewhat's problem about the product. If the problem can use the parts to solve,
we will offer you the replacement for free during warranty time.
Q:Are you a factory or trade company?
A:We are a professional stage lighting factory.
Q:Do you accept OEM or ODM?
A:We accept OEM but not for ODM now.
Q:What's the delivery time?
A:Usually,it costs about 3 to 7 days for sample and more time for bulk order.Eg,as for a 20 cabniet,we need about 20 days to prepare well.
Q:What's the payment term?
A:We accept T/T,western union and paypal.
Q:Are the products of good quality?How can you ensure it?
A:Yes,the quality is good.We have strict test before shipping.We have test for semi-manufactured products about 3 days and 2 days for end products.

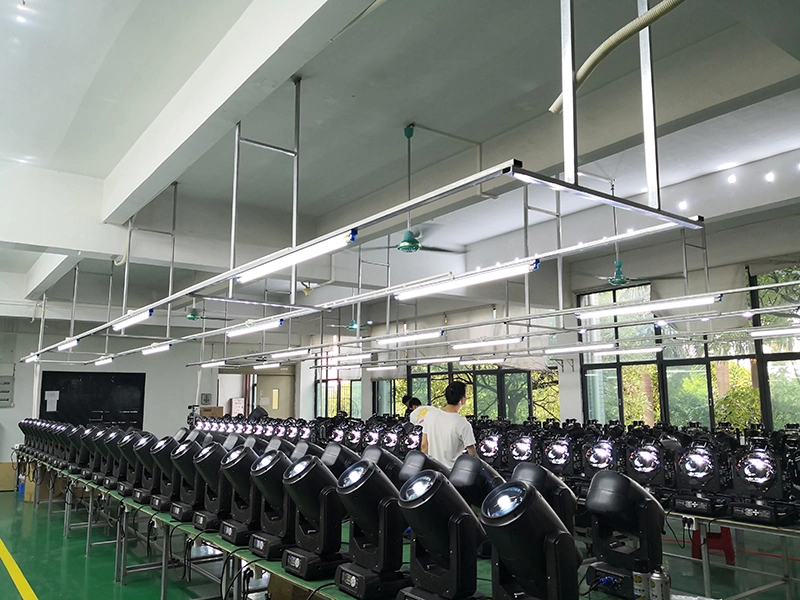

Guangzhou Ao Mei Di Stage Lighting Equipment Company was built in 2006.It is a professional enterprise of high new technology in producing stage lighting equipment. Its workshop covers an
area of 6000squaremeters and total area over 9000squaremeters.
Your satisfication is our goal.
