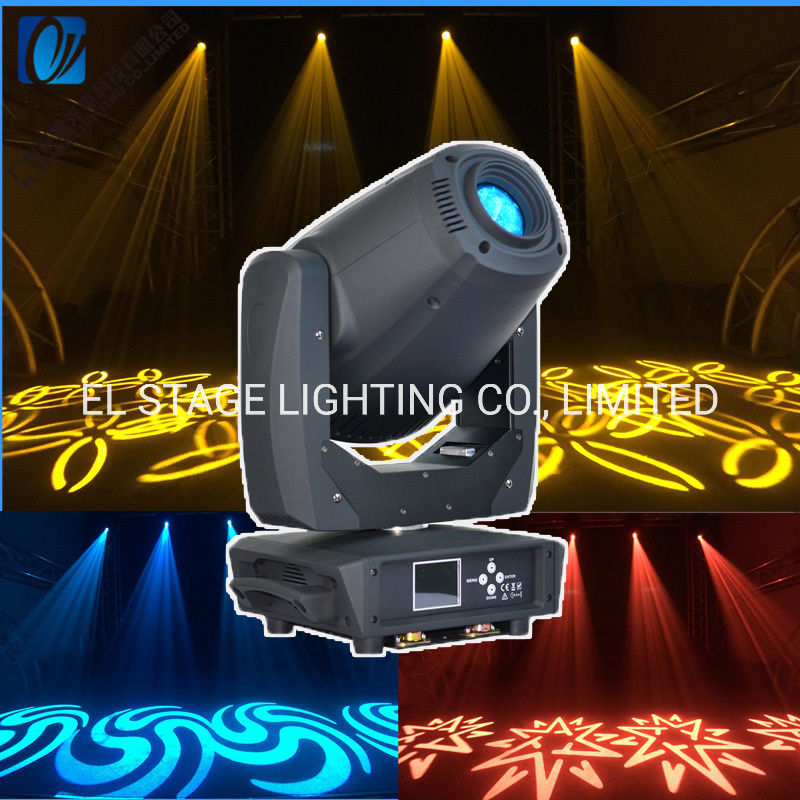

230W 250W LED Beam Moving Head Light with DMX Console Control

230w 250w LED beam moving head light with DMX CONSOLE CONTROLSpecification:Input power:AC100-240V 50/60 HzPower consumption :230WDMX channel:6/15 channels Pan scan:540°(16bit) Electric correction Tilt scan:220° (16bit) Electric correction Color wheel: one color wheel, 12 kinds of color chips

Featured Products

230w 250w LED beam moving head light with DMX CONSOLE CONTROL
Specification:

Input power:AC100-240V 50/60 Hz
Power consumption :230W
DMX channel:6/15 channels
Pan scan:540°(16bit) Electric correction
Tilt scan:220° (16bit) Electric correction
Color wheel: one color wheel, 12 kinds of color chips in one color wheel
Static Gobo: 13 gobos+open
Effect Wheel: one Rotation 8 prism
Lens optical system mechanical focus .beam angle 4°
Control mode:DMX512/Master-Slave/Auto run
Dimmer : 0- 100 %
Strobe:0-20 HZ
Display:LCD display
WEIGHT&SIZE
N.W: 13.25 KG
G.W: 15.4 KG
Packing size: 56*40*31.5cm


menu (Color Display 2.4'TFT--H6)
DMX Address001~512
Operating ModeDMX 6 Ch
DMX 15 Ch
AutoPerform Mode 1
Perform Mode 2
Perform Mode 3
Perform Mode 4
Perform Mode 5
Perform Mode 6
Perform Mode 7
Perform Mode 8
Sound
Master AutoPerform Mode 1
Perform Mode 2
Perform Mode 3
Perform Mode 4
Perform Mode 5
Perform Mode 6
Perform Mode 7
Perform Mode 8
Master Sound
Slave
Language Settingchinese
English
Advanced SettingPan Reverse
Tilt Reverse
Display Reverse
Reset Motor
Factory Reset
Home PositionPassword
 PANCode        =018
 TILT. =000
 Dimmer. =000
 Color. =000
 fixed Gobo. =000
 Focus. =000
 Prism. =000
Mic Sensitive= 000
System InfoCurrent Time
Total Time
Current Mode
Temperature
Software Version
Manual ControlPAN. =000
TILT. =000
Pan/Tilt Speed. =000
Dimmer. =000
Strobe. =000
Color. =000
fixed Gobo. =000
Focus. =000
Prism. =000
Prism Whell. =000

DMX list :
6/15 DMX CHANNEL :
6/15 channel definition table(H6 LED Moving Head Beam)
6CH15 CHDMX ValueFunction
31000-255Dimmer(0-100%)
42000-004Shutter closed
005-250Strobe effect slow to fast
251-255Shutter open
13000 - 255X
 4000-255X-Fine
25000 - 255Y
 6000-255Y-Fine
 7000 - 255XY SPEED
 8000-007Open(White)
008-013White/Color1
014-019Color1
020-025Color1/Color2
026-031Color2
032-037Color2/Color3
038-043Color3
044-049Color3/Color4
050-055Color4
056-061Color4/Color5
062-067Color5
068-073Color5/Color6
074-079Color6
080-085Color6/Color7
086-091Color7
092-097Color7/Color8
098-103Color8
104-109Color8/Color9
110-115Color9
116-121Color9/Color10
122-127Color10
128-133Color10/Color11
134-139Color11
140-145Color11/Color12
146-151Color12
152-157Open(White)
158-204Forward rainbow effect from fast to slow
205-208Rotation stop
209-255Backward rainbow effect from slow to fast
 9000-007Open(White)
008-013Gobo1
014-019Gobo2
020-025Gobo3
026-031Gobo4
032-037Gobo5
038-043Gobo6
044-049Gobo7
050-055Gobo8
056-061Gobo9
062-067Gobo10
068-073Gobo11
074-079Gobo12
080-085Gobo13
086-091Gobo1 Shake
092-097Gobo2 Shake
098-103Gobo3 Shake
104-109Gobo4 Shake
110-115Gobo5 Shake
116-121Gobo6 Shake
122-127Gobo7 Shake
128-133Gobo8 Shake
134-139Gobo9 Shake
140-145Gobo10 Shake
146-151Gobo11 Shake
152-157Gobo12 Shake
158-163Gobo13 Shake
164-203Forward rainbow effect from fast to slow
204-209Rotation stop
210-255Backward rainbow effect from slow to fast
 10000-255Focus
 11000-007Open(White)
008-255Prism
 12000-007Stop
008-129Forward Prism Rotation from fast to slow
130-133Stop
134-255Backward Prism Rotation from slow to fast
513000-007Empty
008-047Auto Play 1
048-087Auto Play 2
088-127Auto Play 3
128-167Auto Play 4
168-207Auto Play 5
208-247Auto Play 6
248-255Color Gobo Sound Control
614000-007Empty
008-032X/Y auto run 1
033-058X/Y auto run 2
059-084X/Y auto run 3
085-110X/Y auto run 4
111-136X/Y auto run 5
137-162X/Y auto run 6
163-188X/Y auto run 7
189-214X/Y auto run 8
215-240X/Y auto run 9
241-255X/Y Sound Control
 150-200Auto Run Speed(from fast to slow)
201-255RESET(10S)
